PP-SDK: high accuracy with GPS post-processing

Post-Processing Software Development Kit

  • API: an Application Programming Interface enables the creation of applications to preprocess SBF input files, control the PVT calculation with commands similar to receiver commands and analyze the resulting output SBF files

  • Post Processing Engine: the core engine that performs the actual standalone, SBAS and RTK PVT solutions using GPS/GLONASS data

  • RINEX Module: converts RINEX 2.1 & RINEX 3.0 observation and navigation files to SBF, supports GPS, GLONASS and SBAS geostationary satellites

  • BaseFinder: Automatically searches the internet for the most suitable reference station corrections for your input file. Available via API or a Graphical User Interface.

  • SBF Stream: a rich set of functions is provided to merge, process or condition Septentrio Binary Files (SBF) files for PVT calculation

  • PostNav: a graphical application for easy interaction with post processing functionality

  • Libraries: both dynamic and static libraries are provided

  • Sample applications to demonstrate key features of the PP-SDK for quick and easy integration




Septentrio-PP-SDK-post-processing-kinematic-tool
PP-SDK - PPK from Septentrio - Architecture flow for post processing



RTK vs PPK

Do you need sub-cm accurate positioning, but you don’t want to set up a real-time base station link? RTK (Real Time Kinematic) accuracy can also be achieved with post-processing, which is known as PPK (Post Processing Kinematic). Often used in mapping and photogrammetry, PPK can be used whenever real-time positioning is not necessary. It can also be used to improve GPS/GNSS data when the real-time base station link is unstable or has malfunctioned. Septentrio PP-SDK offers you the possibility to achieve reliable centimeter-level positioning by post-processing GNSS and base station data.

GPS/GNSS post-processing in your workflow

PP-SDK (Post-Processing Software Development Kit) utilizes Septentrio’s advanced PVT algorithms to post-process GNSS measurements. By combining GNSS and base station data reliable cm-level accuracy can be achieved at the office. The SDK includes all the necessary tools to incorporate post-processing functionality into your own applications and products.It is compatible with common programming languages such as C/C++/C#. You can choose to automate the workflow with our API or to use the GUI applications for manual processing.

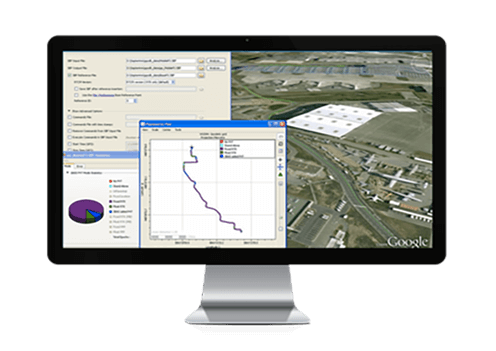

PPSDK - PPK post processing kinematic tool from Septentrio
PPSDK - the PPK post processing kinematic tool from Septentrio


Support documentation

General Notice

  • Using Google Chrome to download the software package may trigger an alert for dangerous content. You can safely ignore this alert and continue downloading by right-clicking on the alert and selecting 'Keep'.
  • A hardware permissions dongle is required to run the post-processing part of the PPSDK. Without the dongle, you only obtain limited functionality: RINEX converter, SBF stream editing.
  • To run the full package of PPSDK, you require a permission file for the licence installer. This is only available after you have placed an order.
  • Please contact orders[at]septentrio.com if you are interested in receiving a full or a demo licence of the software.
PPSDK v4.6.5 Installer
190.39 MB
Download
PPSDK v4.6.5 User Manual
4.06 MB
Download
PPSDK v4.6.5 Release Notes
159.71 KB
Download
