PolaRx5S

全星座、全频点GNSS电离层监测接收器

实时TEC输出与闪烁指数输出
GNSS频谱范围内具有竞争优势的信号跟踪
独特的干扰监测
耐用外壳，多种通信选项
干扰监测及抗干扰 (AIM+) 工具

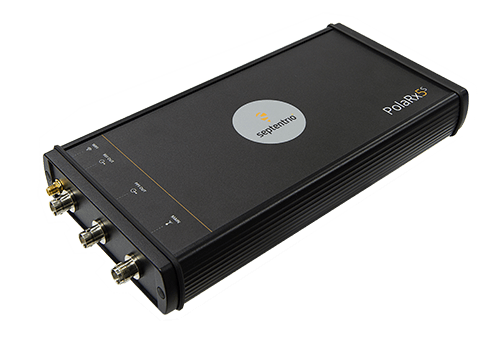

Septentrio-PolaRx5S-accurate-GNSS-reference-receiver-angle

Septentrio-PolaRx5S-accurate-GNSS-reference-receiver-side

PolaRx5S的功耗低于多数竞争对手，闪烁噪声指数超低，以高达100 Hz的速度记录和传输数据的同时进行GNSS测量。PolaRx5S紧凑耐用的外壳、低功耗和开放技术，使其非常适合快速、高效地集成到您的现有网络中。

Septentrio’s patented GNSS+ technologies

AIM+ Advanced Interference Monitoring and Mitigation More info AIM+ Unique anti-interference system monitors, flags and mitigates narrow and wideband interference, jamming and spoofing. More info

Protocols

Onboard storage More info 16GB internal disk, used for data logging
Number of logging sessions More info Up to 40 logging jobs (8 independent sessions x 5 data formats)	8

Interfaces

10 MHz reference input
10 MHz reference output
x PPS output More info Maximum 100 Hz
COM ports	4
Ethernet port More info 100 Mbps
Wi-Fi More info Integrated Wi-Fi 802.11b/g/n
Power over Ethernet More info Power over Ethernet (PoE) 802.3af standard, mode A, 37-57VDC
USB client More info Full-speed USB
USB host More info USB host for external storage, up to 128GB.
HTTP/HTTPS

File transfer features

FTP server

Physical & environmental

IP rating	IP65

Show more specifications

支持文档

PolaRx5S Firmware v5.5.0 Release Notes

85.25 KB

下载

PolaRx5S Firmware Package v5.5.0

54.27 MB

下载

PolaRx5S Firmware v5.5.0 Reference Guide

2.25 MB

下载

PolaRx5S Quick Start Guide

256.38 KB

下载

PolaRx5S User Manual v2.4

8.51 MB

下载

3D drawing

3.12 MB

下载
