AsteRx4

多频双天线GNSS接收机

544个通道，可通过两根天线跟踪GPS、GLONASS、伽利略、北斗、NavIC、QZSS和SBAS定位系统发送的所有已知信号和未来信号
精确、稳健的航向角计算
厘米级 (RTK) 和分米级 (PPP) 位置精度
双L波段通道，支持校正
Septentrio GNSS+算法，确保稳健的工业性能
独特的抗干扰能力：3个陷波滤波器，抑制信号干扰器的干扰
易于集成，界面文本全部编制成文档
综合性板载网页界面和GNSS SW工具箱

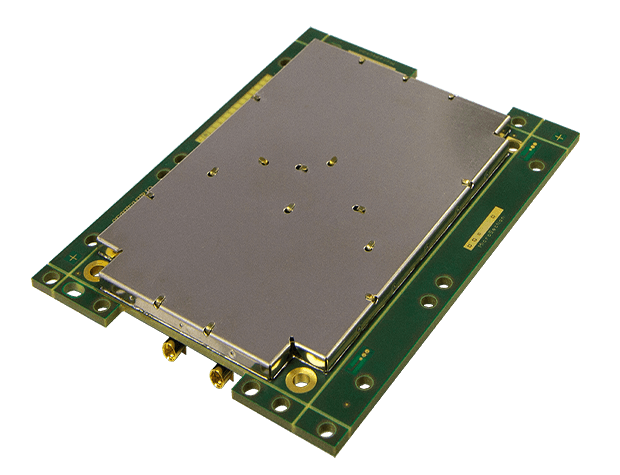

Septentrio-AsteRx4-OEM-board-GNSS-receiver

AsteRx4是Septentrio最先进的多星座双天线接收机。其三频引擎能通过两根天线跟踪所有全球导航卫星系统 (GNSS) 星座：GPS、GLONASS、伽利略、北斗、NavIC, 和QZSS。它支持目前和未来可用的信号 - 直到将来，也为您保证可靠、精确的GNSS定位。

干扰稳健性

AsteRx4采用AIM+技术，市场上最先进的板载抗干扰技术。它能抑制各种各样的干扰源，从简单的连续窄带信号到最复杂的宽带和脉冲干扰器，无所不能。RF频谱可按时间域和频率域实时查看。

Septentrio’s patented GNSS+ technologies

AIM+ Advanced Interference Monitoring and Mitigation More info AIM+ Unique anti-interference system monitors, flags and mitigates narrow and wideband interference, jamming and spoofing. More info
Integrated dual-channel L-band receiver
Heading GNSS attitude More info Optional feature

Interfaces

Hi-speed serial ports (RS232)	4
Ethernet port (TCP/IP, UDP, LAN 10/100 Mbps)	1
High-speed/full-speed USB device port	1
Event markers More info Depending on configuration.	2
xPPS output (max. 100 Hz)	1

Integrated position accuracy

Standalone - horizontal More info Open-sky conditions. RMS levels.	1.2 m
Standalone - vertical More info Open-sky conditions. RMS levels.	1.9 m
SBAS - horizontal More info Open-sky conditions. RMS levels.	0.6 m
SBAS - vertical More info Open-sky conditions. RMS levels.	0.8 m

RTK-INS

Horizontal accuracy More info + 0.5 ppm	0.6 cm
Vertical accuracy More info + 1 ppm	1 cm

Velocity

Velocity accuracy More info Open sky conditions. RMS levels.	3 cm/s

Show more specifications

支持文档

AsteRx4 OEM取代下列产品：

AsteRx2e OEM
AsteRx2eL OEM
AsteRx3 OEM
AsteRxeH OEM

AsteRx4 Firmware v4.10.0 Release Notes

79.66 KB

下载

AsteRx4 Firmware v4.10.0 Reference Guide

2 MB

下载

AsteRx4 Firmware Package v4.10.0

53.93 MB

下载

AsteRx4 Product Family Hardware Manual v1.6.0

1.91 MB

下载
